Form Mode

Form Mode displays a canvas alongside an auto-generated form panel. End-users fill in text, images, and colors through the form; the canvas updates in real-time. Designed for embedding via iframe when you want users to customize templates without the full editor UI.

Check out how it looks like:

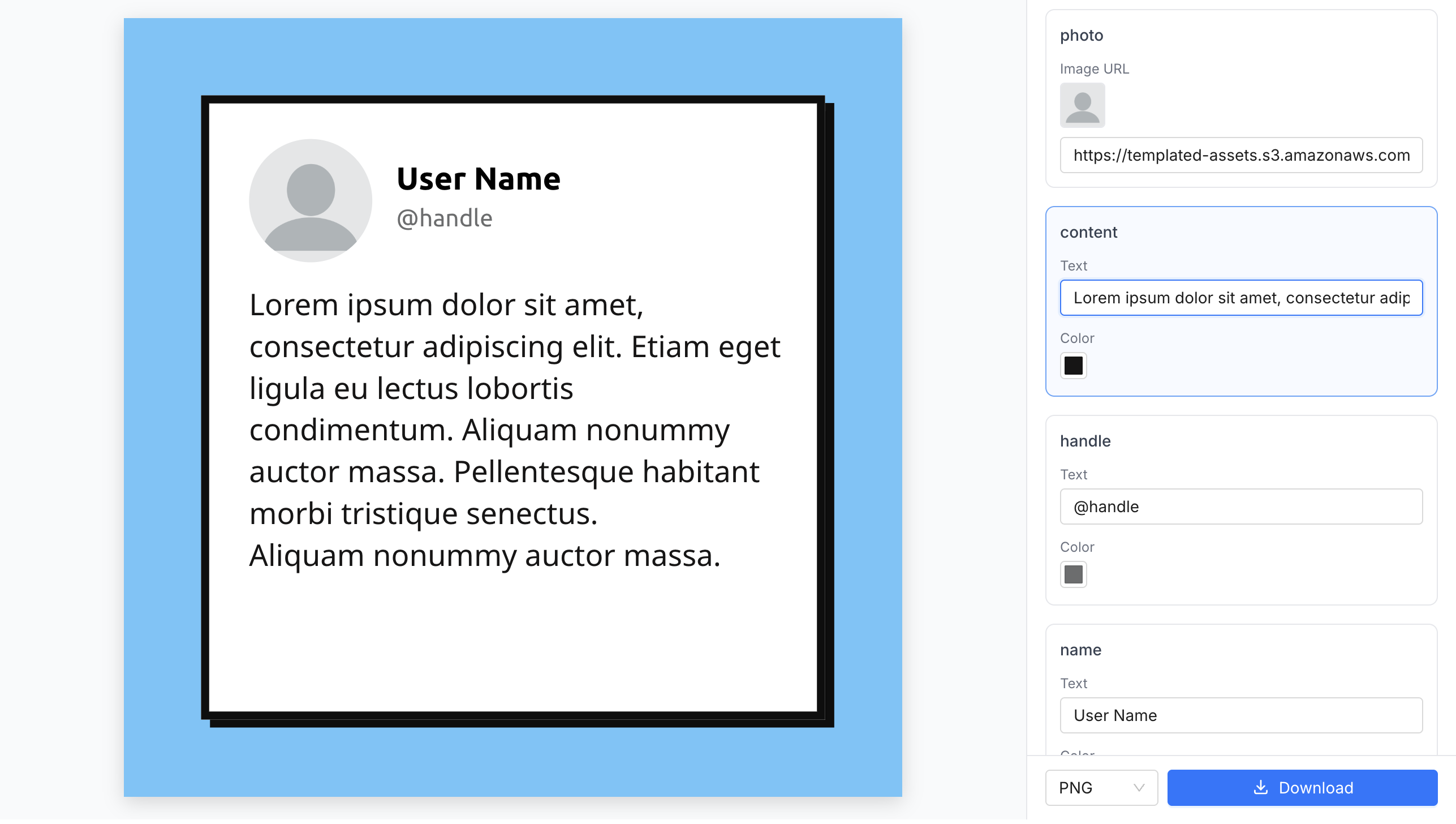

Form Mode — canvas with auto-generated form panel

Enable Form Mode

Use the form base path: /editor/form/{TEMPLATE_ID}?embed={CONFIG_ID}.

<iframe
  id="template-embed"
  src="https://app.templated.io/editor/form/{$TEMPLATE_ID}?embed={$CONFIG_ID}"
  width="100%"
  height="600"
  frameborder="0"
></iframe>

URL parameters

Form Configuration

form-panel-position (left|right) — form panel position, default right

Example with flags:

<iframe
  src="https://app.templated.io/editor/form/{$TEMPLATE_ID}?embed={$CONFIG_ID}
       &form-panel-position=left&allow-download=true"
  width="100%" height="600" frameborder="0"
></iframe>

Layer visibility

Lock layers in the editor to hide them from the form.
Unlocked layers automatically appear as form fields.
This lets you control exactly which layers end-users can customize.

Layer types

Each layer type renders a different set of form controls:

Layer type	Form controls
Text	Text input + color picker
Image	URL input
Shape	Fill color picker + stroke color picker
QR Code	Text input for data
Barcode	Text input for data
Rating	Number input

Runtime control (postMessage)

After the iframe loads, you can control Form Mode at runtime using postMessage. The editor will also send events back.

Messages you can send to the editor

// Toggle form mode on or off
iframe.contentWindow.postMessage({
  type: 'SET_FORM_MODE',
  enabled: true
}, '*');

// Change the form panel position
iframe.contentWindow.postMessage({
  type: 'SET_FORM_PANEL_POSITION',
  position: 'left' // 'left' | 'right'
}, '*');

Events the editor sends back

window.addEventListener('message', (event) => {
  // Optional: verify origin: if (event.origin !== 'https://app.templated.io') return;
  const msg = event.data;
  switch (msg?.type) {
    // Form mode toggled
    case 'FORM_MODE_UPDATED':
      console.log('Form mode:', msg.enabled, 'Success:', msg.success);
      break;

    // Panel position changed
    case 'FORM_PANEL_POSITION_UPDATED':
      console.log('Panel position:', msg.position, 'Success:', msg.success);
      break;

    // A form field value changed
    case 'FORM_VALUES_CHANGED':
      // msg.data contains { layerName: { prop: value } }
      console.log('Form values changed:', msg.data);
      break;

    // User clicked the render button in the form
    case 'FORM_RENDER_REQUESTED':
      console.log('Render requested:', msg.format, msg.templateId);
      break;
  }
});

Mobile

On screens narrower than 1024px, the form panel automatically stacks below the canvas for a mobile-friendly layout.

Complete example

<iframe id="template-embed" width="100%" height="700" frameborder="0"></iframe>
<div>
  <button onclick="toggleFormMode()">Toggle Form Mode</button>
  <button onclick="switchPanelPosition()">Switch Panel Position</button>
</div>

<script>
  const iframe = document.getElementById('template-embed');
  const CONFIG_ID = 'YOUR_EMBED_CONFIG_ID';
  const TEMPLATE_ID = 'tpl_ABC123';

  let formEnabled = true;
  let panelPosition = 'right';

  // 1) Initial URL-based load
  const url = new URL(`https://app.templated.io/editor/form/${TEMPLATE_ID}`);
  url.searchParams.set('embed', CONFIG_ID);
  url.searchParams.set('form-panel-position', 'right');
  iframe.src = url.toString();

  // 2) Listen for editor events
  window.addEventListener('message', (event) => {
    const msg = event.data;
    console.log('Received message:', msg);

    switch (msg?.type) {
      case 'EDITOR_READY':
        console.log('Editor ready for interactions');
        break;

      case 'FORM_MODE_UPDATED':
        formEnabled = msg.enabled;
        console.log('Form mode:', formEnabled ? 'enabled' : 'disabled');
        break;

      case 'FORM_PANEL_POSITION_UPDATED':
        panelPosition = msg.position;
        console.log('Panel position:', panelPosition);
        break;

      case 'FORM_VALUES_CHANGED':
        console.log('Form values changed:', msg.data);
        break;

      case 'FORM_RENDER_REQUESTED':
        console.log('Render requested:', msg.format, msg.templateId);
        break;
    }
  });

  // 3) Control functions
  function toggleFormMode() {
    formEnabled = !formEnabled;
    iframe.contentWindow.postMessage({
      type: 'SET_FORM_MODE',
      enabled: formEnabled
    }, '*');
  }

  function switchPanelPosition() {
    panelPosition = panelPosition === 'right' ? 'left' : 'right';
    iframe.contentWindow.postMessage({
      type: 'SET_FORM_PANEL_POSITION',
      position: panelPosition
    }, '*');
  }
</script>
